Mansford Plant and Construction pty ltd

Mansford Plant and Construction Pty Ltd provides expert lifting and elevated access solutions across Brisbane and regional Queensland. The company offers a diverse fleet of truck-mounted EWPs, spider lifts, and a versatile 5.5-tonne crane truck for wet and dry hire. Skilled operators, Tier 1 site-ready machines, and full certification support ensure every project is completed efficiently and safely. Rapid mobilisation, meticulous lift planning, and responsive service are central to their operations. Mansford Plant and Construction is trusted by civil, industrial, power, and telecommunications clients to tackle complex tasks with professionalism and care.

🚛 Crane Truck Hire – 5.5 Tonne Payload with Ferrari 541RA3

Our Hyundai EX8 crane truck is fitted with a Ferrari 541RA3 hydraulic crane, offering dependable lifting and transport capabilities for a range of mid-scale jobs.

Key Specs:

• Payload capacity: 5,500 kg
• Tray length: 4.4 to 4.8 metres
• Crane reach: up to 10.3 metres
• Mounted on compact Hyundai EX8 chassis

Typical Uses:

• Equipment relocation and delivery
• Structural steel, cable drum, and HVAC transport
• Site logistics and event infrastructure
• Power transmission upgrades (e.g., pole hardware, cabinets)

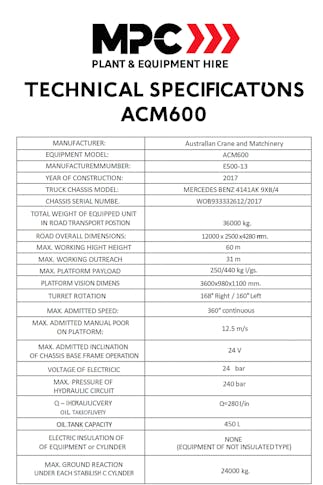

🚀 ACM600 Truck-Mounted EWP – 60m Reach + 250kg Lifting Arm

The ACM600 is our highest-reaching truck-mounted elevated work platform. With a working height of 60 metres and an optional 250kg lifting arm, it is ideal for projects that require both access and lifting in one deployment.

Key Specs:

• Maximum working height: 60 m
• Horizontal outreach: 31 m
• Platform capacity: 280–440 kg
• 250 kg hydraulic lifting arm (optional)
• Mercedes-Benz Actros 8x8 base vehicle
• Wind rated up to 12.5 m/s
• 360° turret rotation, remote & platform controls

Typical Uses:

• Telecommunications tower works and RRU change-outs
• High-rise and façade access
• Power transmission upgrades at height
• Wind farm maintenance and blade inspection
• Bridge and stadium infrastructure access

⚙️ ACM400 Truck-Mounted EWP – 40m Reach + 250kg Lifting Arm

The ACM400 combines mid-level reach with high load capacity and is now available with a 250kg lifting arm, making it ideal for lifting tools and materials in addition to personnel.

Key Specs:

• Maximum working height: 40 m
• Outreach: up to 22 m at 325 kg or 15 m at 500 kg
• Platform capacity: 325–500 kg
• 250 kg hydraulic lifting arm (optional)
• 360° turret slew with articulated fly boom
• Ideal for multi-worker access and equipment hoisting

Typical Uses:

• Telecommunications tower work
• Electrical and data installations
• Signage and façade work
• Power transmission upgrades on poles and gantries

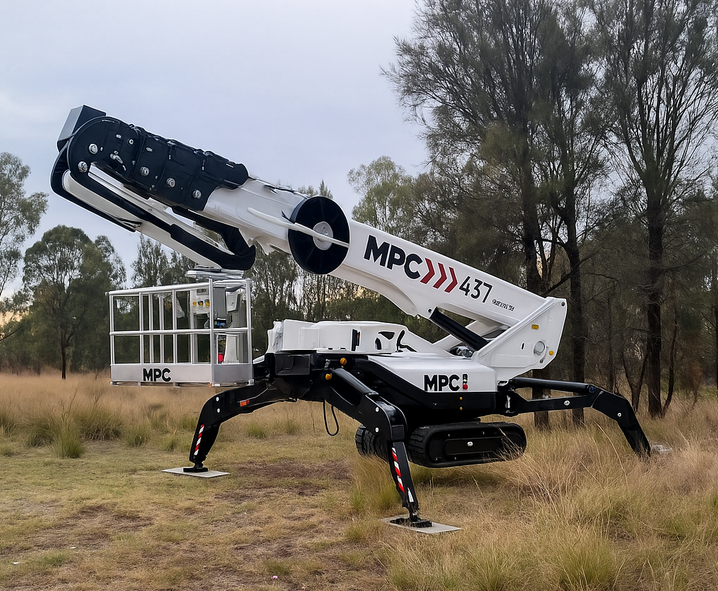

🕷 Monitor 43T Spider Lift – Tracked Access with 43m Reach

The Monitor 43T spider lift is a compact tracked unit capable of tackling complex terrain and tight access zones. It’s ideal for elevated work where conventional truck-mounted units can’t reach.

Key Specs:

• Max working height: 43.18 m
• Outreach: 18.69 m
• Platform load capacity: 400 kg
• Hybrid power: Kubota diesel + lithium batteries
• 25° slope setup and auto-levelling outriggers
• Optional 500 kg winch attachment

Typical Uses:

• Tower inspections and telecom installations
• Tree clearance and structure maintenance
• Access on soft or uneven ground
• Overhead power line inspection and minor works
